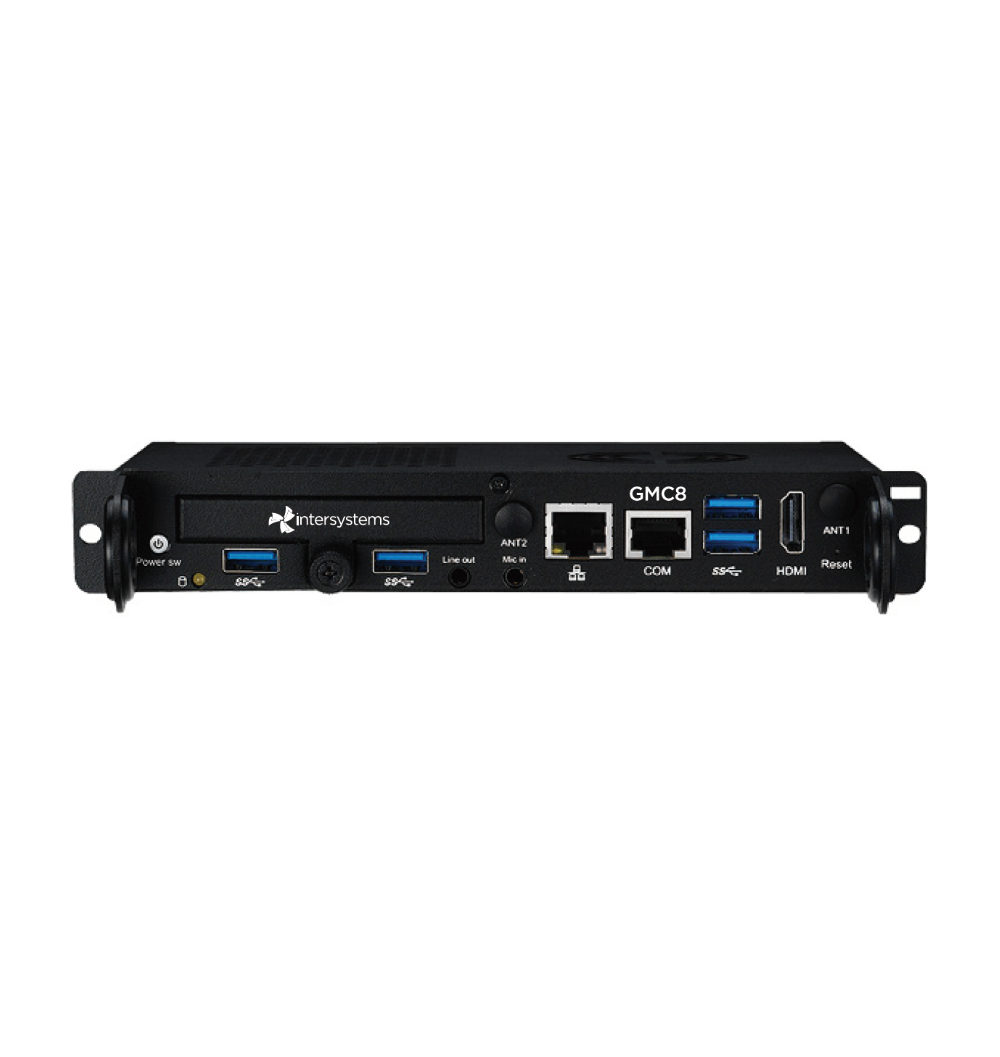

GMC8xp

GMC8xp

our most advanced FIDS controller yet

From its innovative Open Pluggable Standard (OPS) design, powerful Intel i5 Dual Core processor through to its impressive video processing capabilities - the GMC8xp digital display controller is our most powerful FIDS controller ever.

Screenshot

streamlined installation and management

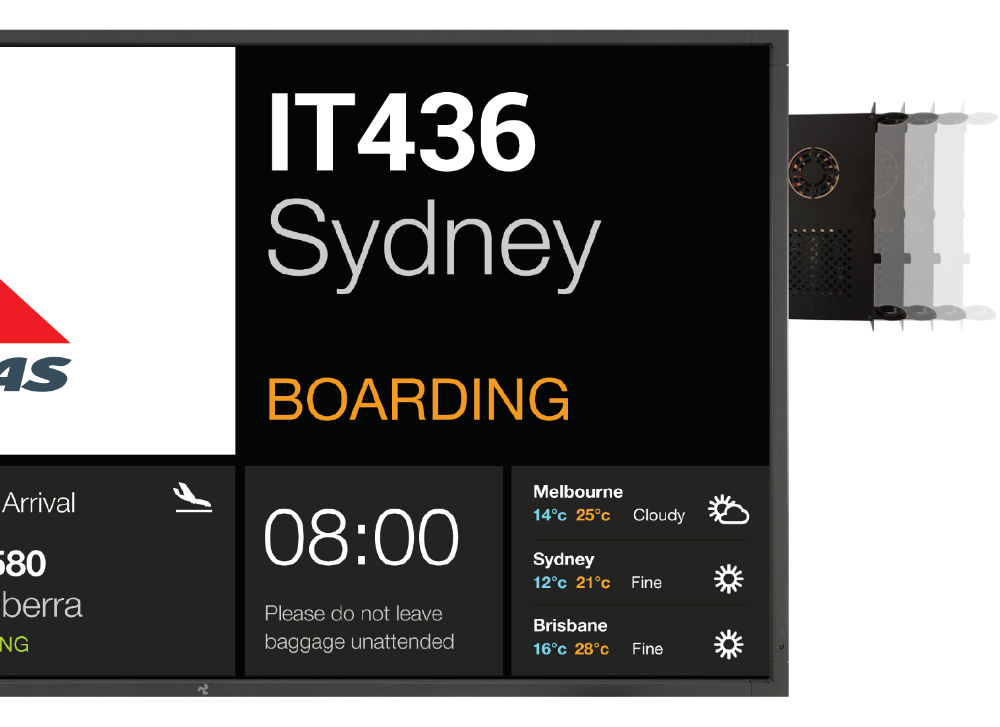

The GMC8xp slots directly into your OPS equipped display and connects via a network cable - simple as that. There’s no power cables, no video cables, no hassle.

To support older display technologies that are not OPS equipped the GMC8xp has an optional housing converting it into a standalone display controller.

Download Datasheet

Tech Spec

GMC8xp


Processor

Intel i5 Dual Core processor (Haswell) Fan


Memory

8 GB of DDR3 1600MHz onboard memory


Storage

64 GB SATA SSD


Watchdog

Yes


Graphics and Video Support

Dual head video output. File support for: mov, mpg, mp4, avi, swf1, wmv, ogg. Resolution support for: 3840x2160, 1920x1080, 1600x1200, 1360x768, 1280x1024, 1280x768, 1024x768, 800x600, 640x480 in landscape and portrait modes.

1 The performance of swf files is dependent on the frame-rate, compression and optimisation.


Network

10/100/1000 Mbps auto-negotiating

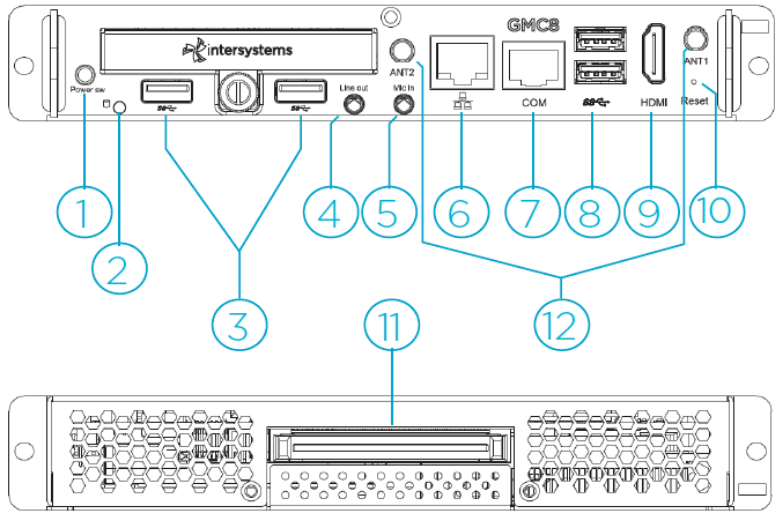

Connections and Expansion

  • 1. Power Switch
  • 2. HDD Indicator
  • 3. USB 3.0 x2
  • 4. Audio (Line-out)
  • 5. Audio (Line-in)
  • 6. Ethernet
  • 7. Com Port
  • 8. USB 3.0 x2
  • 9. HDMI
  • 10. Reset Switch
  • 11. OPS Interconnector
  • 12. WiFi Antenna Port x2
GMC8xp

Pyhsical

Height: 30.0 mm (1.18")
Width: 200.0 mm (7.87")
Depth: 119.0 mm (4.68")
Weight: 1.0 kg (2.2 lbs)


Environmental

0˚C ~ +45˚C (+32˚F ~ +113˚F) with an airflow of 1.2 m/sec (3.9 ft/sec)


Certifications

CE, FCC, RoHS


Software

Intersystems Linux gOS or
Windows 7 (or higher)


Limited Warranty

Your GMC8xp comes with a one-year limited RTB warranty. Purchase Intersystems Support Pack to extend your service and support to three years from your date of purchase.


Optional Add-ons

GMC8sa standalone housing to allow use on non-OPS equipped displays
802.11 Wifi module and antennas
3G modem module and antenna


In the Box

GMC8xp OPS Digital Display Controller
3 m Cat6 Patch Cable


All specifications are subject to change without notice. Errors and omissions are excepted. 13 SEP 2016
